AVR Python
The AVR Python conveyor is the indispensable, flexible link in your crop handling line and is available in both a single belt and a twin belt version. This conveyor offers a high capacity and is extremely potato-friendly thanks to such features as the moving raised edges.
Moreover, the AVR Python is easily transportable and very easy to operate.
SOLID BASE & EASY MANEUVERABILITY
One of the typifying features of the AVR conveyor is a stable and robust frame that also offers a high degree of maneuverability.
Thanks to the independent height adjustment of the product intake and discharge outlets and the electronic length adjustment, the Python can be installed in every position on the line. Moreover,
the twin conveyor has been designed to allow both belts to be positioned at all possible angles relative to each other.
A tandem construction with four casters and the 360° rotatable main wheels allow the machine to be moved by only one person.
Highlights
EASE OF USE

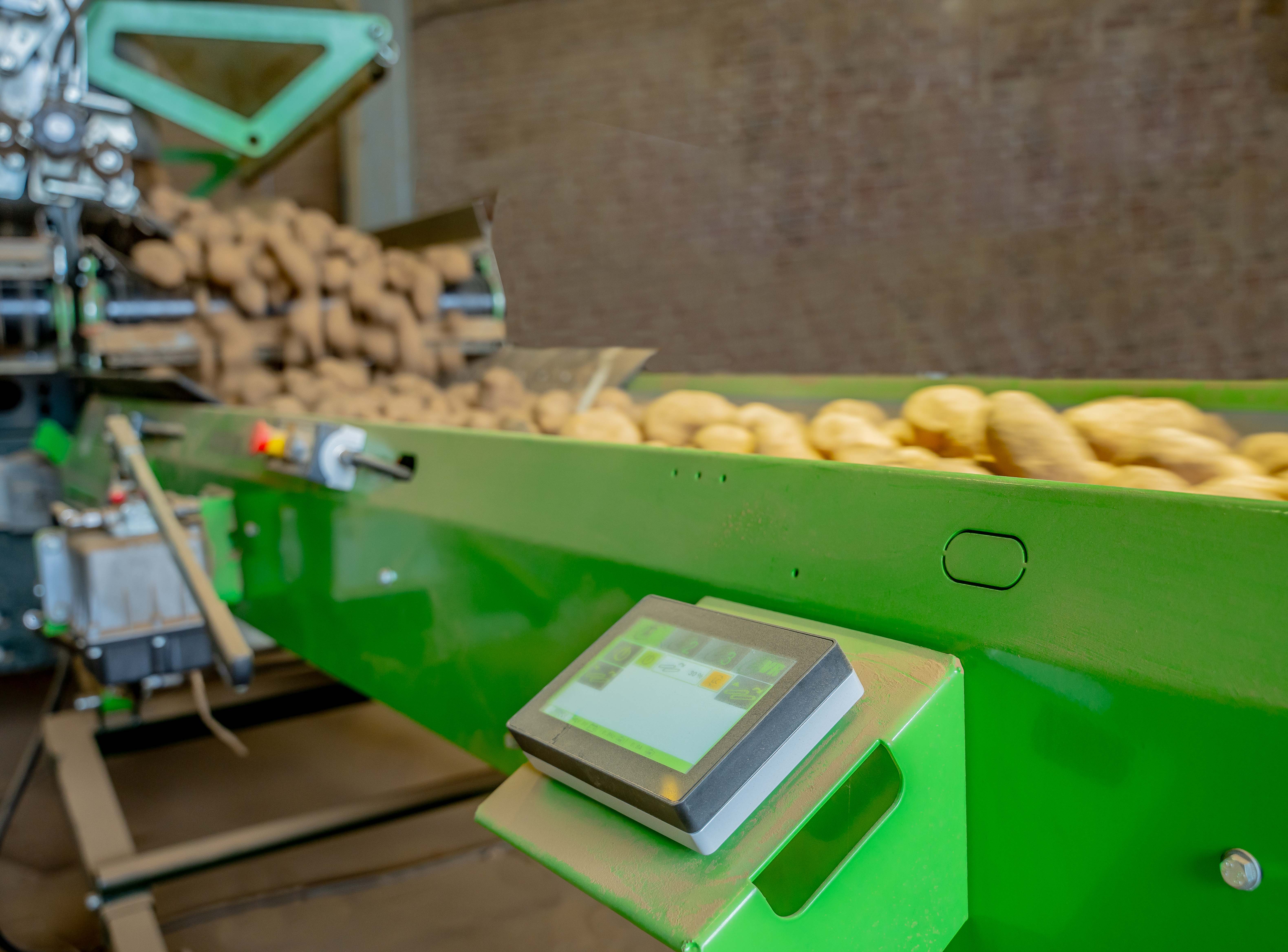

AVR conveyors are designed to relieve the user’s work. The extensive features with which they are equipped as a standard include a frequency converter, infinite speed adjustment, electronic length adjustment, and a belt control system that makes readjustments completely unnecessary. <br><br>Additionally, the installation of AVR Line Control software allows the Python to communicate with all other AVR machines in the line.
CAPACITY COMBINED WITH QUALITY

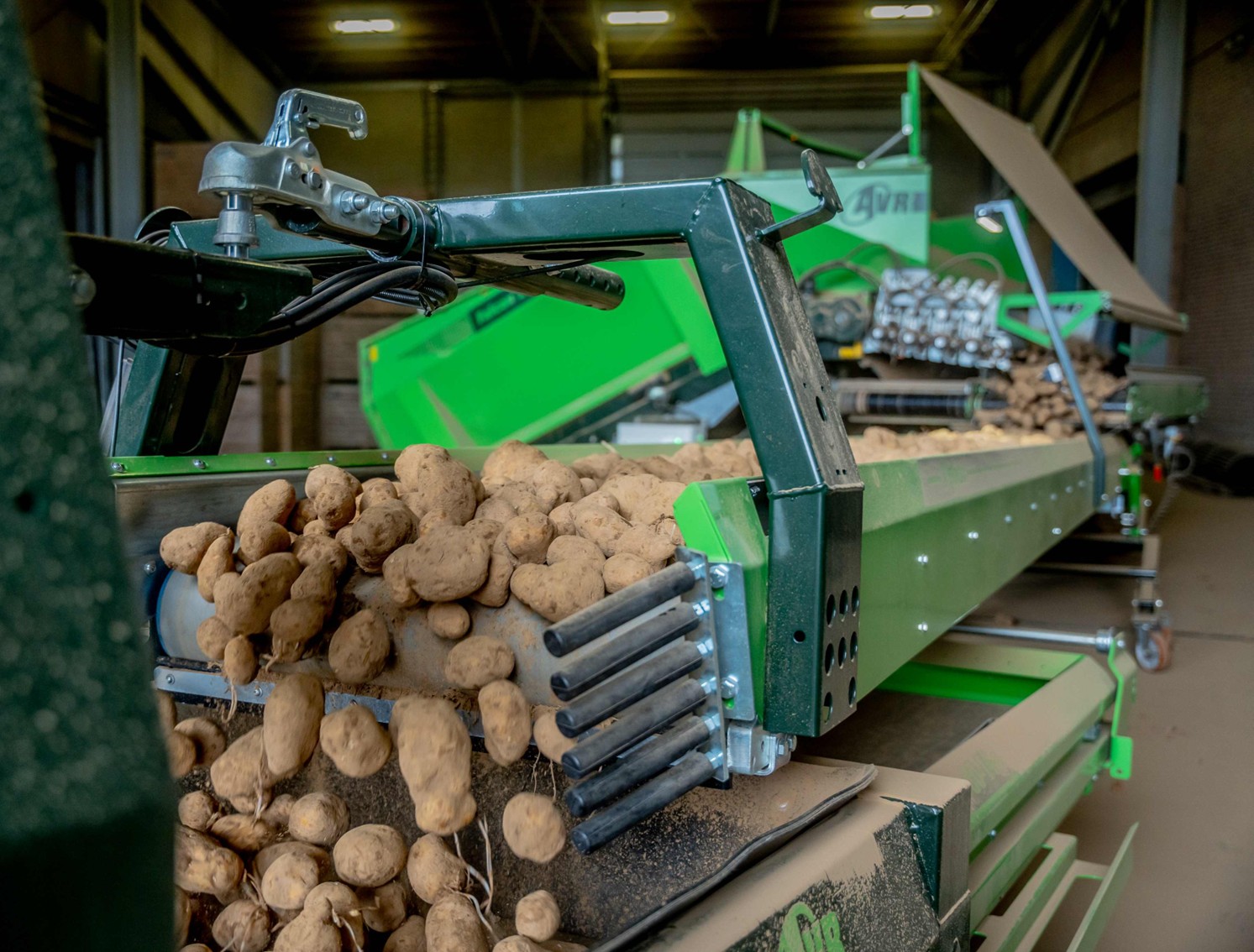

The clever design of the conveyor belts with raised edges ensures that the product never comes into contact with the metal frame parts, thus guaranteeing an extremely soft product flow. <br><br>The combination of a fully adjustable transition between the first and second conveyor belt and a drum measuring no more than 160 mm in diameter ensures that drop heights are reduced to an absolute minimum. All of this results in an extremely product-friendly conveyor system.
CONVENIENT ADD-ONS
Convenient add-ons include an extra power outlet, a lighting set for product inspection, connecting frames at the product intake and discharge points, and rubber protective elements that ensure an even more gentle transition to the next machine in the line.
Technical details
| 80-7-S | 80-9-S | 80-11-S | 80-14-T | 80-18-T | |
|---|---|---|---|---|---|
| Conveyor belt length (m) | 7 | 9 | 11.5 | 2 x 7 | 2 x 9 |
| Minimum entry height (m) | 0.76 | 0.80 | 0.75 | 0.75 | 0.75 |
| Maximum entry height (m) | 1.74 | 1.72 | 1.75 | 1.28 | 1.28 |
| Minimum delivery height (m) | 0.42 | 0.50 | 0.40 | 0.92 | 0.92 |
| Maximum delivery height (m) | 1.50 | 1.41 | 1.54 | 1.51 | 1.48 |
| Conveyor width (m) | 0.80 | 0.80 | 0.80 | 0.80 | 0.80 |
| Capacity*(tons/hr.) | 340 | 340 | 340 | 340 | 340 |
| Speed(m/min.) | 24-84 | 24-84 | 24-84 | 24-84 | 24-84 |
